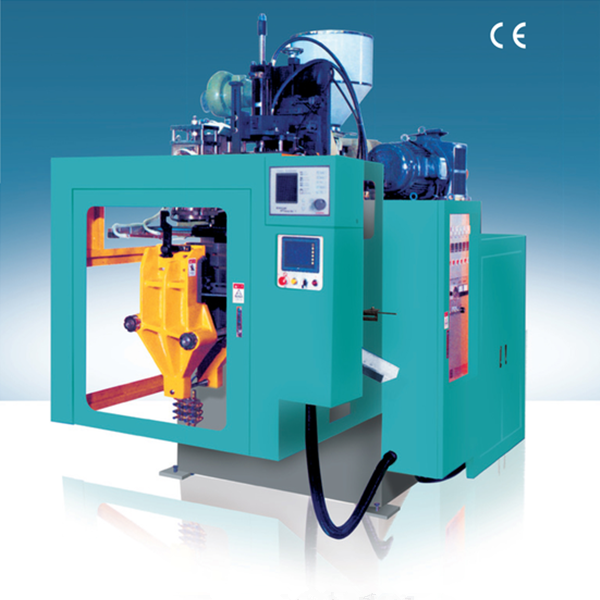

Single Station Blow Moulding Machine KLB70

high quality Single Station Blow Moulding Machine，Blow Moulding Machine Company，Blow Moulding Machine Supplier

RFQ

Description

Download

Specification		KLB70
Material	PE.PP.PVC.PA…
Max container capacity	L	8
Output(dry Cycle)	S	4
Dimension(L×W×H)	M	3.5×1.8×2.5
Total weight	ton	4.8
Clamping Unit
Clamping force	KN	100
Platen opening stroke	mm	200-500
Platen size	mm	365×340
Max mould size(W×H)	mm	430×365
Mould thickness	mm	200-350
Power
Total power	Kw	55
Fan power for screw	Kw	0.5
Oil pump power	Kw	15
Air pressure	Mpa	0.8
Air consumption	m3/min	0.7
Average energy consumption	KW/h	35
Extruder unit
Screw diameter	mm	70
Screw L/D ratio	L/D	24
Plasticising capacity	Kg/hr	80
Number of heating zone	zone	4
Extruder heating power	KW	15
Extruder driving power	KW	22
Die-head
Number of heating zone	zone	3月6日
Power of die heating	KW	5月10日
max diameter of head tooling	mm	180
Accumulator capacity	L	2

*Figures and data in this catalogue are subject to change without notice due to constant research and development

KLB70 extrusion blow molding machine, which is produced by our company, is mainly applicable to the production of blowing barrels, motorcar gasoline tank, toolbox and other large plastic hollow products.

It consists of main machine, electric, hydraulic, pipe and other selection functional parts.

The main machine in including: extrusion device; accumulator head; clamping unit; frame; functional blowing device (optional); and manipulator (optional), etc.

Electric system in including: the heating and temperature controlling system of die-head and extruder; parison controlling system (optional); PLC and related

safe-guarding system.

Hydraulic system: hydraulic supply and its pressure, direction, flow controlling parts.

Pipeline parts: distribution of machine pipe, including oil, water and air pipe.

The shaping principle is “extruding- blowing”.The extruder adopts inverter to adjust、the speed to get the great timing range, which could meet the producing requirements for different products. The fused plastic plasticized by the extruder, is extrude into the accumulator head. When it reaches a certain volume, parison controller (optional) will constantly change the opening range of the die. And then it is injected into mould and blown out the products. Finally the manipulator (optional) will take the product out. Thus a complete circle finished.

This machine optional function parts are including: bottom blowing device, manipulator, and parison controller, which are subject to the configurations of the purchase order.
