PC-Machine

high quality PC bottle machine，Blow Moulding Machine Supplier，PC bottle machine Supplier

RFQ

Description

Download

Specification		KLB82
Material		PC
Max container capacity	L	20
Output(dry Cycle)	pc/nr	350
Dimension(L×W×H)	M	5.6×2.7×4.5
Total weight	ton	11
Clamping Unit
Clamping force	KN	190
Platen opening stroke	mm	250-800
Platen size	mm	800×800
Max mould size(W×H)	mm	650×800
Mould thickness	mm	250-420
System Pressure	Mpa	14
Power
Total power	Kw	83
Fan power for screw	Kw	0.9
Oil pump power	Kw	45
Air pressure	Mpa	1
Air consumption	m3/min	0.6-0.8
Average energy consumption	KW/h	45
Servo motor power	Kw	4
Extruder unit
Screw diameter	mm	82
Screw L/D ratio	L/D	25/30
Plasticising capacity	Kg/hr	90
Number of heating zone	zone	5
Extruder heating power	KW	30
Die-head
Power of die heating	KW	8.7
Max diameter of head tooling	mm	130
Accumulator capacity	L	1.85

*Figures and data in this catalogue are subject to change without notice due to constant research and development.

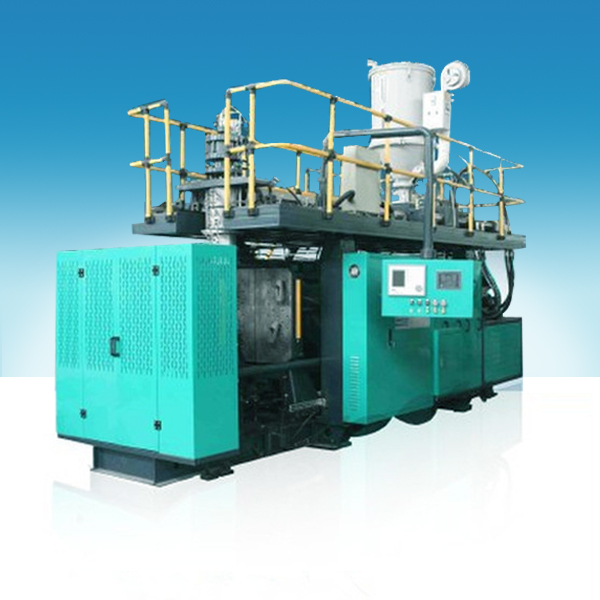

KLB82PC extrusion blow molding machine, which is produced by our company, is mainly applicable to the production of blowing barrels, motorcar gasoline tank, toolbox and other large plastic hollow products.

It consists of main machine, electric, hydraulic, pipe and other selection functional parts.

The main machine in including: extrusion device; accumulator head; clamping unit; frame; functional blowing device (optional); and manipulator (optional), etc.

Electric system in including: the heating and temperature controlling system of die-head and extruder; parison controlling system (optional); PLC and related

safe-guarding system.

Hydraulic system: hydraulic supply and its pressure, direction, flow controlling parts.

Pipeline parts: distribution of machine pipe, including oil, water and air pipe.

The shaping principle is “extruding- blowing”.The extruder adopts inverter to adjust、the speed to get the great timing range, which could meet the producing requirements for different products. The fused plastic plasticized by the extruder, is extrude into the accumulator head. When it reaches a certain volume, parison controller (optional) will constantly change the opening range of the die. And then it is injected into mould and blown out the products. Finally the manipulator (optional) will take the product out. Thus a complete circle finished.

This machine optional function parts are including: bottom blowing device, manipulator, and parison controller, which are subject to the configurations of the purchase order.
