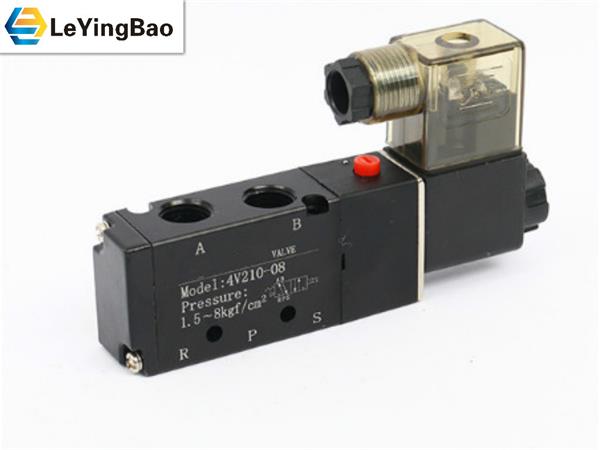

4V200 Air Controlled Solenoid Valve
Delivery in the month,1 year warranty,Quality assurance
Description
Download
4V200
The 4V200 series valve is a kind of air valves. It includes 5/3 ,3/2 ,5/2 type solenoid valve ,With Single coil Double position ,Double coil Double Position ,Double coil Three Position type ,Inlet ,Outlet port G1/4 & G1/8 ,Exhaust Port Only G1/8 ,Most Regular 4V210-08 is widely used in different area ,Like Air Cylinder ,All type of Machine.
Ordering Code
| Mode | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |
| Type | 5/2 | 5/3 | 5/2 | 5/3 | ||||||
| Flow rate | 14mm2（Cv=0.78） | 12mm2（Cv=0.67） | 16mm2（Cv=0.89） | 12mm2（Cv=0.67） | ||||||
| Model | 3V210-06 | 3V220-06 | 3A210-06 | 3A220-06 | 3V210-08 | 3V220-08 | 3A210-08 | 3A220-08 |
| Type | 3/2 | 3/2 | ||||||
| Flow rate | 14mm2（Cv=0.78) | 16mm2（Cv=0.89） | ||||||
| Connection ports | Inlet = Outlet = Exhaust = G1/8" | Inlet = Outlet = G1/4" Exhaust = G1/8" | ||||||
| Media | Clean air | |||||||
| Working type | Pilot | |||||||
| Working pressure | 0.15 ~ 0.8MPa | |||||||
| Max. pressure | 1.2MPa | |||||||
| Ambient temp | -5 ~ 50℃ | |||||||
| Voltage tolerance | ±10% | |||||||
| Power | AC:4.5VA DC:3W | |||||||
|
Insulation class Protection class |
F class. IP65 | |||||||
| Terminal | Flying Lead Or Din43650B PIN | |||||||
| Frequency | 5 cycles/s | |||||||
| Response time | 0.05s | |||||||
Technical characteristics
1, guide way: external and internal optional;
2. Sliding column structure, good sealing, sensitive reaction;
3, three position solenoid valves have three central functions to choose from.
4, double head two position solenoid valve has memory function;
5. The inner hole is processed by special technology with small friction resistance, low starting air pressure and long service life.
6. No fuel lubrication is needed.
7. The valve group can be integrated with the base to save installation space.
8. The installation of manual equipment is conducive to the installation and commissioning.
9. There are a variety of standard voltage grades for selection.
